591B Chicken Mobility Analyzer
The 591B Densimeter with the Chicken Mobility calibration is designed to quickly and accurately analyze the mobility of a sample. Mobility is a measurement of the net movement of sperm cells through a resistance medium. The 591B Densimeter will estimate sperm concentration and automatically perform all calculations required to analyze the mobility of a sample. The Poultry Mobility Assay was developed by Oregon State University to identify highly fertile males. Scientific research has proven a direct correlation between the mobility of the semen and the fertility of the fowl.
Mobility is measured by overlaying a microliter volume of buffered semen on top of an Accudenz® solution, incubating the sample for five minutes, and then measuring the test cuvette using the Densimeter. The Densimeter displays the Mobility Index score, which can be used to categorize each individual male. Such categorization is meaningful because sperm mobility is a primary determinant of fertility in poultry. The sperm mobility assay has an advantage over conventional semen evaluation tests because this assay can identify both inferior and superior sires.
The Chicken Sperm Counter kit includes the 591B Densimeter, chicken sperm concentration calibration, and all equipment and supplies for the first 100 tests.
Additional semen processes and additional tests for the 591B Densimeter are available and upgrades are easily implemented.
Mobility is measured by overlaying a microliter volume of buffered semen on top of an Accudenz® solution, incubating the sample for five minutes, and then measuring the test cuvette using the Densimeter. The Densimeter displays the Mobility Index score, which can be used to categorize each individual male. Such categorization is meaningful because sperm mobility is a primary determinant of fertility in poultry. The sperm mobility assay has an advantage over conventional semen evaluation tests because this assay can identify both inferior and superior sires.
The Chicken Sperm Counter kit includes the 591B Densimeter, chicken sperm concentration calibration, and all equipment and supplies for the first 100 tests.
Additional semen processes and additional tests for the 591B Densimeter are available and upgrades are easily implemented.
The 591B Chicken Mobility Analyzer (591B-913) includes:

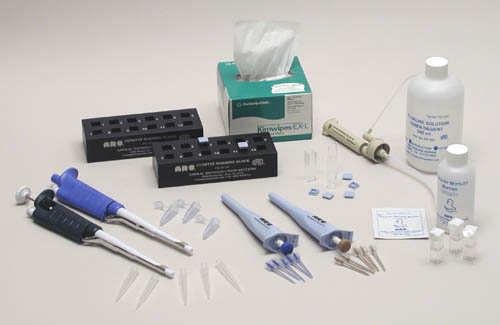

The 591B Chicken Mobility Analyzer Kit (DENK-913) includes items listed above plus:
Specifications
- Height: 4.5 in.
- Width: 9.0 in.
- Length: 8.0 in.
- Weight: 2.6 Lbs. (Densimeter only)
- External Power Supply: 100 - 240VAC, 47 - 63 Hz input, 12VDC 1.5A output.
| Quantity | Description | Part Number |
| 1 | Slide Warmer Kit w/cord set at 41C (120V) | 581A-207 |
| 1 | Calibration Loader Software | 591-139-0406-V.V |
| 1 | 591B Power Supply | 537-684 |
| 1 | Serial Cable | 537-674 |
| 1 | 12 V Adapter | 537-691 |
| 1 | 591B Chicken Mobility Analyzer Manual | 591B-135-15 |
| Quantity | Description | Part Number |
| 1 | Slide Warmer Kit w/cord set at 41C (120V) | 581A-207 |
| 1 | Cuvette Warming Block | 537-361 |
| 1 | Mobility Buffer Kit | PMB-OF |
| 1 | Mobility Assay Test Cuvettes, 100/pkg | MTC-101/100 |
| 1 | Conical Centrifuge Tubes, 1.5 ml, 100/pkg | 537-369/100 |
| 1 | Pipette, 300 ul Fixed Volume | 537-376 |
| 1 | Pipette, 100 - 1000 ul Adjustable | 537-378 |
| 1 | Tips, Pipette Wide Orifice, Racked 100/rack | 537-379-R/100 |
| 1 | 50 ul Positive Displacement Pipette | 594PT-0500 |
| 1 | 11.4 ul Positive Displacement Pipette | 594PB-0114 |
| 1 | ARS Pipette Tip, Tan, 100 pc in Rack | 594TT-R/100 |
| 1 | ARS Pipette Tip, Blue, 100 pc in Rack | 594TBPY-R/100 |
| 1 | Disposable Cuvettes, 4 ml, with Caps | 537-204-205/100 |
| 1 | 3% NaCl Solution | 537-347 |
| 1 | NaCl Dispenser | 537-202 |
| 1 | Kimwipes® | 537-669 |
